Cheap Hd200 Steel Structure Bailey Bridge For Infrastructure Prefabricated Steel Bridge For Highway
video

Cheap Hd200 Steel Structure Bailey Bridge For Infrastructure Prefabricated Steel Bridge For Highway

Overview Quick Details Standard: ASTM, bs, GB Grade: Q345B-Q460C Place of Origin: Jiangsu, China Brand Name: BAILEY Model Number: JSBLGQ-HD200-104 Type: Heavy, Heavy Application: Steel Structure Bridge, Steel Structure Bridge Tolerance: ±3% Processing Service: Bending, Welding, Decoiling,...
Send Inquiry
Chat Now

Description

Technical Parameters



Overview

Quick Details

Standard: ASTM, bs, GB

Grade: Q345B-Q460C

Place of Origin: Jiangsu, China

Brand Name: BAILEY

Model Number: JSBLGQ-HD200-104

Type: Heavy, Heavy

Application: Steel Structure Bridge, Steel Structure Bridge

Tolerance: ±3%

Processing Service: Bending, Welding, Decoiling, Cutting, Punching

Dimensions: standard

Max Loading capacity: customize

Minimum longevity: customize

Galvanized: customize

Qualification: ISO

Product name: Steel Structure Building

Engineer service: customize

Color: customize


Supply Ability

Supply Ability: 10000 Ton/Tons per Year


Packaging & Delivery

Packaging Details: Standard 40HQ Container

Port: Shanghai

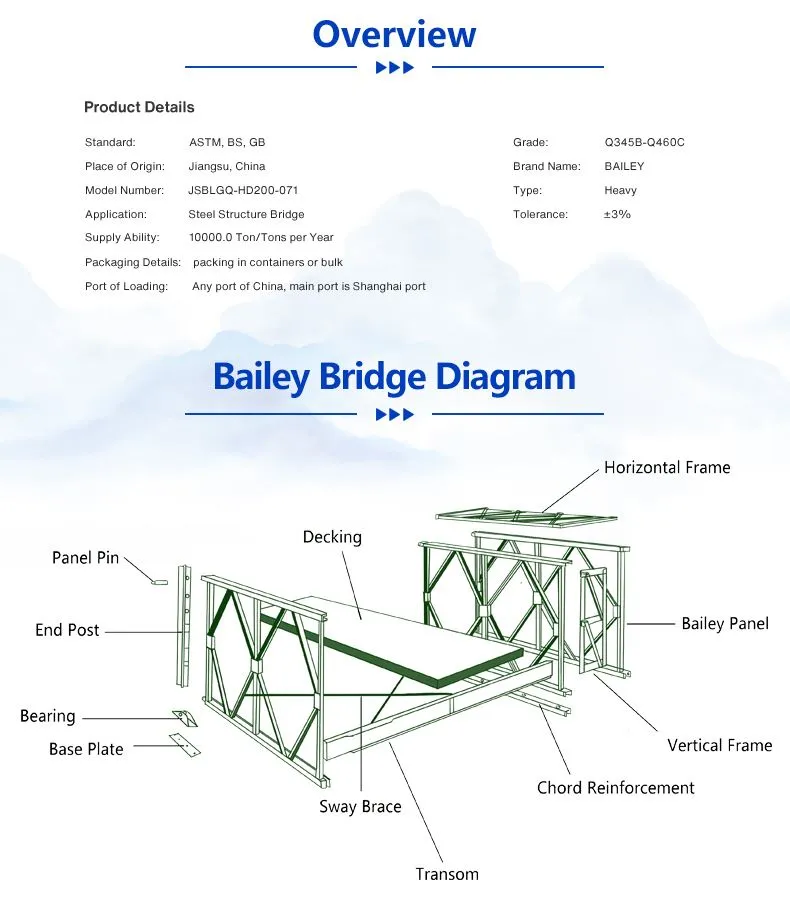

2

ZB200 truss press limited table
No
internal force
structure form
not reinforced model
reinforced model
SS
DS
TS
QS
SSR
DSR
TSR
QSR
200
standard truss moment(kN.m)
1034.3
2027.2
2978.8
3930.3
2165.4
4244.2
6236.4
8228.6
200
standard truss shear (kN)
222.1
435.3
639.6
843.9
222.1
435.3
639.6
843.9
201
high bending truss moment(kN.m)
1593.2
3122.8
4585.5
6054.3
3335.8
6538.2
9607.1
12676.1
202
high bending truss shear(kN)
348
696
1044
1392
348
696
1044
1392
203
Shear force of super high shear truss(kN)
509.8
999.2
1468.2
1937.2
509.8
999.2
1468.2
1937.2
ZB200 Table of geometric characteristics of truss bridge（Half bridge）
structure
geometric characteristics
geometric characteristics
chord area(cm2)
Section properties（cm3）
Moment of inertia(cm4)
ss
SS
25.48
5437
580174
SSR
50.96
10875
1160348
DS
DS
50.96
10875
1160348
DSR1
76.44
16312
1740522
DSR2
101.92
21750
2320696
TS
TS
76.44
16312
1740522
TSR2
127.4
27185
2900870
TSR3
152.88
32625
3481044
QS
QS
101.92
21750
2320696
QSR3
178.36
38059
4061218
QSR4
203.84
43500
4641392
