Steel Bridge Truss Bridge Puentes Bailey

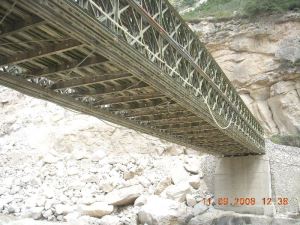

Description
Technical Parameters
Our steel bridge walkway, Assembled Structure Panel, Truss Plate can stand in today's fierce competition market, and can be sold for a long time, depending on the quality of winning, social support and the trust of consumers. The competition of modern enterprises continues to intensify, and new technologies and new products are being introduced. We will meet customers' needs and the actual situation, tailored to customers, of targeted development solutions, as far as possible to meet new and old customers with a variety of reasonable requirements and needs.
Specifications
1 Galvanized to Anti-rusting
2 HD200 Bailey Bridge
3 Permanent used
4 Provide engineer and technology guidance at site
The bailey bridge can be used for 20 to 30 years if zinc coated.
Application of the compact standard 200 panel bridge:
Single lane: Bridge deck width: 4.2m. Span length: 9.14-76.2m
Double lanes: Bridge deck width: 7.4m. Span length: 9.14-57.9m
The compact 200 panel bridge: The compact 200 panel bridge is similar to the compact 100 panel bridge from their appearance. The difference is its increased panel height to 2.134m. It employed the method of alternating joints between Reinforcement Chords and the joints between panels. This method can decrease inelastic deformation caused by the oversized pinholes. Pre-arch method is used to additionally cut down mid-span and vertical deflection to a larger degree. Bolt-connected components use the orienting sleeve- fixing method to increase accuracy of connections. Shear is created in orienting sleeves and tension is developed in bolts, which increase the usage life of the bolts and ensure the safety of panel bridges. Wind resistant brace is made to be composite type and is connected to transom/girders to improve overall stability of panel bridges.
The part between braced frame and panels is fixed through bridging so as to prevent the whole bridge from side bending. After the erection, there will be a pre-arched degree over the span of the bridge. Besides it can be assembled into single-lane bridges. The compact 200 panel bridge can also be assembled into double lane bridge, hence it broadens its application range. It is suitable for the load designs of HS-15, HS-20, HS-25 and pedrail-50 etc
|
Span Construction-Load Table ---Extra Single Lane (W=4200mm) |
|||
|
SPAN-ft |
HS-15 |
HS-20 |
HS-25 |
|
30 |
SS |
SS |
SS |
|
40 |
SS |
SS |
SS |
|
50 |
SS |
SS |
SS |
|
60 |
SS |
SS |
SS |
|
70 |
SS |
SS |
SSR |
|
80 |
SS |
SSR |
SSR |
|
90 |
SSR |
SSR |
SSR |
|
100 |
SSR |
SSR |
SSR |
|
110 |
SSR |
SSR |
DS |
|
120 |
SSR |
DS |
DSR1 |
|
130 |
DS |
DSR1 |
DSR2H |
|
140 |
DSR1 |
DSR2H |
DSR3H |
|
150 |
TSTSR2 |
DSR2H |
DSR4H |
|
160 |
DSR2H |
DSR2H |
TSR2 |
|
170 |
TSR2 |
TSR2 |
TSR3 |
|
180 |
TSR2 |
TSR3 |
TSR3H |
|
190 |
TSR3H |
TSR3 |
QSR4 |
|
200 |
QSR4 |
TSR3QSR3 |
QSR4 |
|
Span Construction-Load Table ---Double Lane (W=7350mm) |
|||
|
SPAN-ft |
HS-15 |
HS-20 |
HS-25 |
|
30 |
SS |
SS |
SS |
|
40 |
SS |
SS |
SS |
|
50 |
SS |
SS |
SSR |
|
60 |
SS |
SSR |
SSR |
|
70 |
SSR |
SSR |
DS |
|
80 |
SSR |
DS |
DSR1 |
|
90 |
SSRH |
DSR1 |
DSR2H |
|
100 |
DSR1 |
DSR2H |
TSR2 |
|
110 |
DSR1 |
DSR2 |
QS |
|
120 |
TS |
DSR2H |
TSR2 |
|
130 |
DSR2H |
TSR2 |
TSR3 |
|
140 |
TSR2 |
TSR3 |
TSR3H |
|
150 |
TSR3H |
TSR3H |
QSR4 |
|
160 |
QSR4 |
QSR4 |
QSR4 |
|
170 |
QSR4 |
QSR4 |
|
|
180 |
QSR4 |
|
|
|
1.SS shows one range one tier; DS shows two ranges one tier; TS shows three ranges one tier; DD shows two range two tiers etc. |
|||
|
2.If R follows SS, DS, DD, etc, means reinforce type,and R1 means only one range reinforced, R2 means two ranges reinforced |
|||
We take quality as the foundation, highly focus on product quality, and provide you with professional solutions for Steel Bridge Truss Bridge Puentes Bailey. We give full play to R&D advantages in design, focusing on every minute detail, safety hazard control, etc. The products adopt high-quality raw materials and advanced technology with a complete set of quality management system to make the product quality stable.
Hot Tags: galvanized truss bridge, China, manufacturers, factory, wholesale, cheap, bailey bridge part over highway, Galvanized Steel Pipe Bridge, bridge for environmental protection, bailey bridge part over bridge, Passenger Boarding Bridge, emergency bailey bridge parts
